Building Multi-Agent Systems with Google’s A2A Protocol

You've got a Research Agent. It finds anything you ask for.

You've got a Writer Agent. It saves files exactly where you want them. Both are brilliant at what they do.

Now you want something simple: research finds information, writer saves it. One task, two agents.

But here's the problem — they've never met.

They don't know the other exists. Two experts in separate rooms, no door between them.

This is where most people start writing glue code. Hardcoding URLs. Manually passing outputs from one agent to another. It works until you add a third agent. Then a fourth. Then it's spaghetti.

There had to be a better way.

What if agents could simply introduce themselves?

"Hey, I'm Research. I find things on the web."

"Nice to meet you. I'm Writer. Send stuff my way, I'll save it."

No hardcoding. No glue code. Just agents discovering each other and figuring out how to collaborate.

That's exactly what Google built. It's called A2A — Agent to Agent protocol.

In this article, I'll show you how to build a multi-agent system where agents introduce themselves, discover each other's capabilities, and work together cleanly.

What is A2A?

A2A stands for Agent to Agent. It's an open protocol by Google that lets AI agents talk to each other over HTTP.

Think of it like this: every agent gets a business card. The card says who they are, what they can do, and how to reach them. Any other agent can read this card and decide, "Okay, this is who I need for this task."

In A2A, that business card is an Agent Card — a simple JSON file at a well-known URL:

json10 lines

// /.well-known/agent-card.json
{
  "name": "Research Agent",
  "description": "I search the web and find information",
  "url": "http://localhost:8001",
  "capabilities": {
    "streaming": false,
    "pushNotifications": false
  }
}

That's it. Name, description, URL, capabilities.

When agents want to work together, they don't need custom integrations. They:

Fetch the agent card
Read what the agent can do
Send a message using a standard format

The message format is JSON-RPC. That's what makes A2A powerful: any agent, built by anyone, in any language, can talk to any other agent — as long as they speak A2A.

Your Python agent can collaborate with someone's JavaScript agent. An agent on your laptop can talk to one on AWS. They just need each other's URLs.

Discovery. Communication. That's A2A in two words.

The Architecture

So agents can introduce themselves. Great. But who talks to who?

You could let every agent talk to every other agent. Research talks to Writer. Writer talks to Research. Add a third agent, now everyone talks to everyone.

That's peer-to-peer. And it's a mess.

With three agents you get six possible connections. A fourth agent makes twelve. A fifth? Twenty.

But connections aren't the real problem. The real problem is every agent needs to know about every other agent, and every agent needs logic to decide "should I handle this or pass it on?" You're duplicating decision-making across the system. When the LLM gets confused about who to delegate to — good luck debugging that.

There's a simpler pattern. One agent is in charge. The rest just do their job.

This is the Host Agent Pattern. Google's official A2A samples use it.

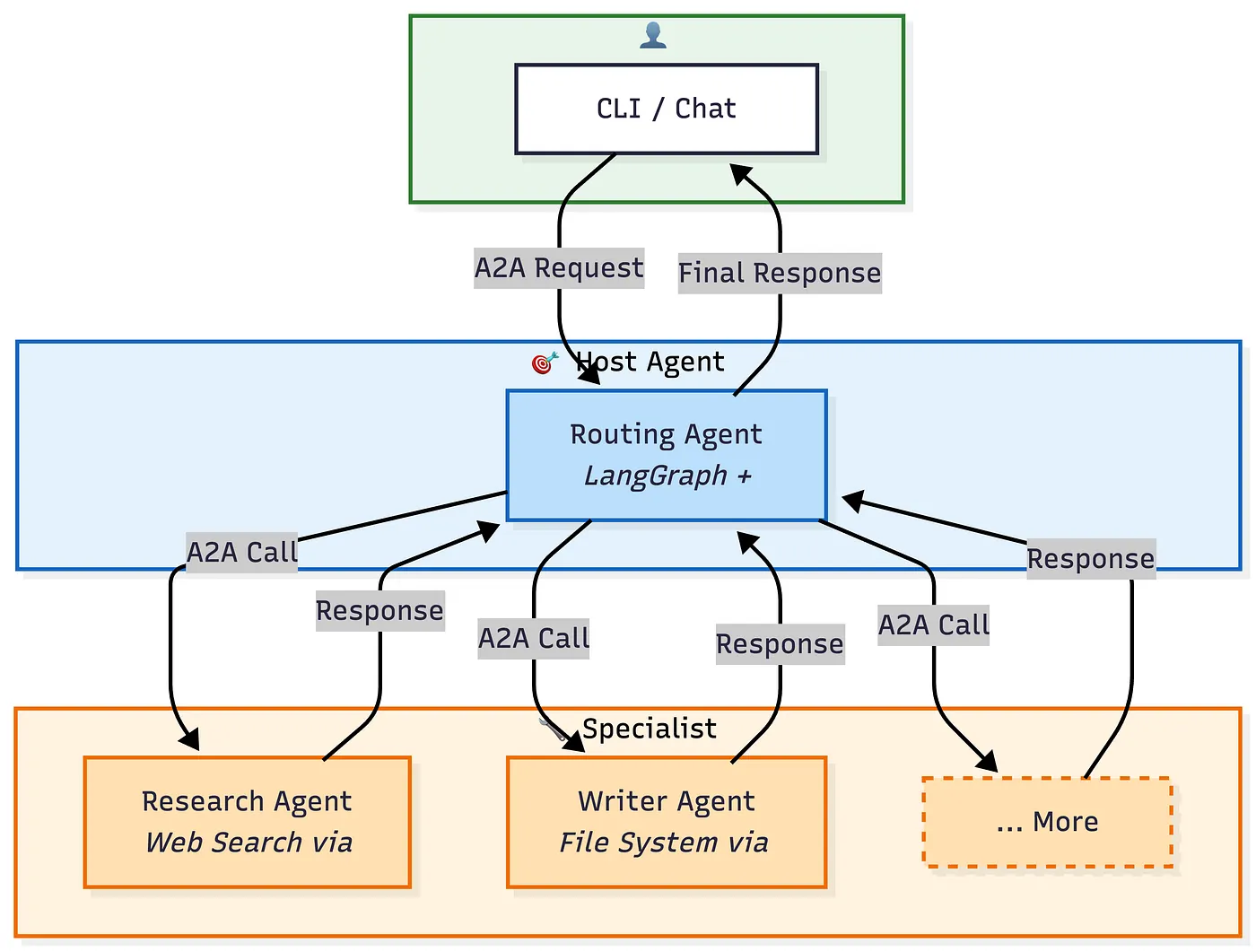

Host agent architecture: CLI talks to a Routing Agent, which delegates via A2A to Research, Writer, and other specialists

The Routing Agent is the only one that knows about other agents. It fetches their agent cards, understands their capabilities, and decides who handles what.

The specialized agents don't know anyone. They don't need to. They search the web, write files, analyze data — and respond.

Want to add a new agent? Deploy it and tell the Routing Agent its URL. No changes to existing agents. No new connections to wire up.

What we're building:

Routing Agent (port 8000) — orchestrator. Receives all requests, delegates to specialists
Research Agent (port 8001) — searches the web (DuckDuckGo)
Writer Agent (port 8002) — reads and writes files

User talks to Routing Agent. Routing Agent talks to everyone else. Simple chain of command.

Tech Stack

Three main pieces:

LangGraph — building the agents
MCP — giving agents tools
A2A Python SDK — agent communication

LangGraph

LangGraph is a framework for building agents with LLMs. It handles the loop:

Receive input
Decide what to do
Use tools if needed
Return a response

It also gives us memory out of the box. Each agent can remember previous messages using a simple MemorySaver.

We're using Google's Gemini as the LLM, but you could swap in OpenAI, Anthropic, or another provider.

MCP (Model Context Protocol)

MCP is how we give tools to agents. Instead of hardcoding tool functions, we connect to MCP servers that expose tools.

Examples:

DuckDuckGo MCP server — web_search, fetch_content
Filesystem MCP server — read_file, write_file, edit_file

The agent doesn't know or care how those tools work internally. It just calls them through MCP. That keeps agent code clean and tools reusable.

A2A Python SDK

Google's official SDK for A2A. It gives us:

A2AServer — expose an agent as an A2A endpoint
A2AClient — send messages to other agents
AgentCard — describe what an agent can do

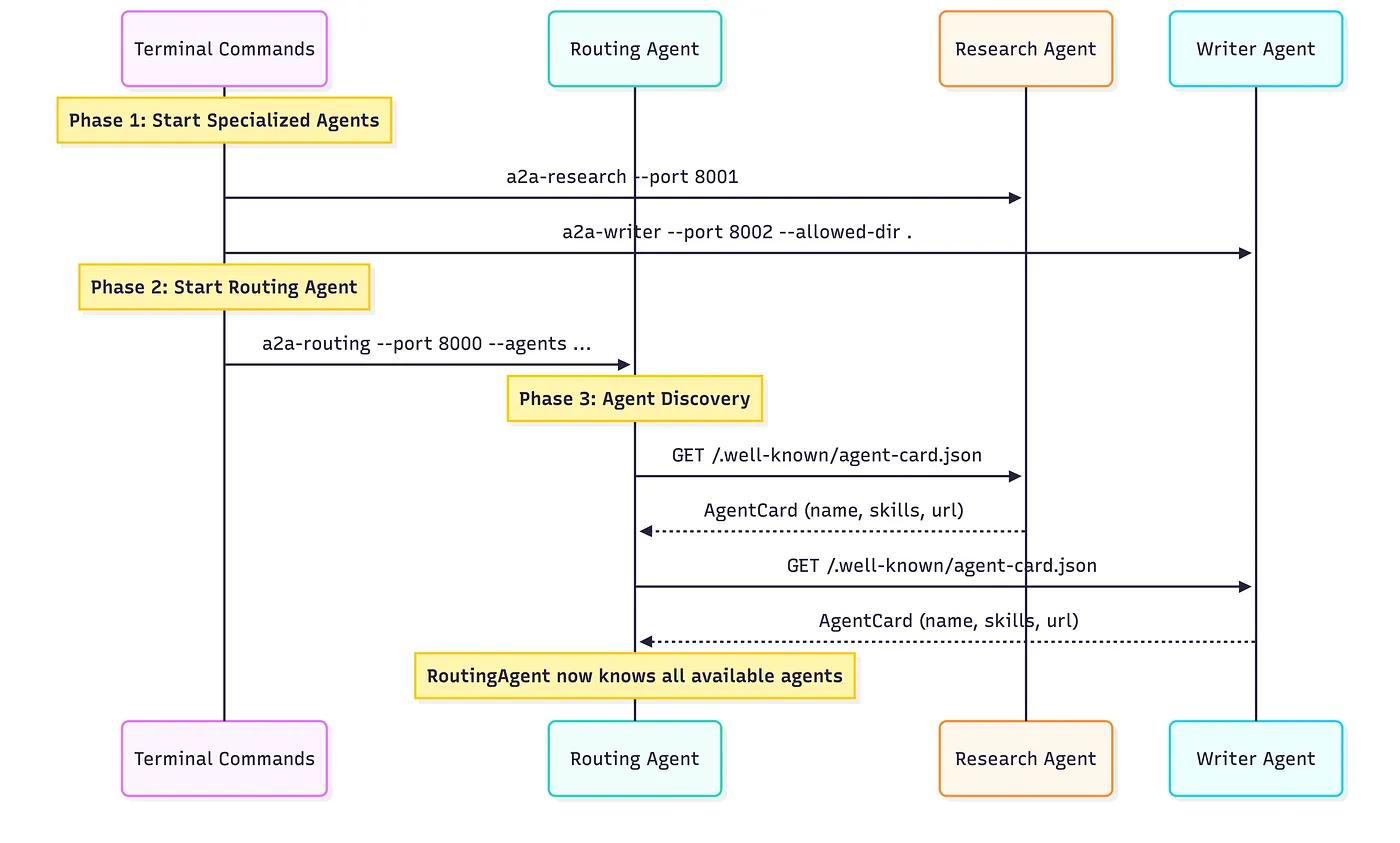

When we start an agent, it serves its agent card at /.well-known/agent-card.json. Other agents fetch that card to discover capabilities.

Building the Agents

Three agents:

Research — searches the web
Writer — saves files
Routing — decides who does what

The Base Agent

Before specialists, we need a foundation. Every agent needs to:

Start an A2A server (so others can find and talk to it)
Connect to MCP tools (so it can actually do things)
Wire up LangGraph (so it can think)

Instead of repeating that three times, we use a base class:

python15 lines

class BaseAgent(ABC):
    def __init__(
        self,
        name: str,
        description: str,
        skills: list[AgentSkill],
        mcp_command: str,
        system_prompt: str,
    ):
        self.name = name
        self.description = description
        self.skills = skills
        self.mcp_command = mcp_command
        self.system_prompt = system_prompt
        self._memory = MemorySaver()

What's going on here:

name / description — how the agent introduces itself
skills — what it can do (others read this to decide whether to delegate)
mcp_command — shell command to start the MCP server for tools
system_prompt — how the agent thinks
_memory — LangGraph memory for conversation history

On startup, the agent grabs its tools:

python13 lines

async def setup(self):
    # Start the MCP server and connect to it
    self._mcp_connection = await self._mcp_manager.get_connection(
        self.mcp_command
    )

    # Ask the MCP server: "What tools do you have?"
    mcp_tool_infos = await self._mcp_connection.list_tools()

    # Wrap those tools so LangGraph can use them
    self._tools = self._mcp_manager.create_langchain_tools(
        self._mcp_connection, mcp_tool_infos
    )

Think of it like walking up to a toolbox (MCP server), looking inside, and grabbing what's there. Tools are discovered at runtime — not hardwired in advance.

Then the thinking loop:

python21 lines

async def process(self, query: str, context_id: str):
    # Build the brain (only once)
    if self._graph is None:
        model = ChatGoogleGenerativeAI(model="gemini-2.0-flash")
        self._graph = create_react_agent(
            model,
            tools=self._tools,
            checkpointer=self._memory,
            prompt=self.system_prompt,
        )

    # Remember conversations by context_id
    config = {"configurable": {"thread_id": context_id}}

    # Think and respond
    async for event in self._graph.astream(
        {"messages": [HumanMessage(content=query)]},
        config=config,
    ):
        # Yield responses as they come
        ...

LangGraph's create_react_agent does the heavy lifting. It takes:

An LLM (Gemini)
Tools (from MCP)
Memory (conversation history)
A system prompt (personality / instructions)

…and returns an agent that can reason, use tools, and respond.

context_id is how the agent remembers previous messages in a conversation.

Research Agent

python23 lines

SYSTEM_PROMPT = """You are a Research Agent specialized in finding information online.
You have access to web search tools. Use them to:
- Search for current information, news, and facts
- Find answers to questions
- Research topics thoroughly
Always provide comprehensive and accurate search results."""

class ResearchAgent(BaseAgent):
    def __init__(self):
        super().__init__(
            name="Research Agent",
            description="Searches the web using DuckDuckGo",
            skills=[
                AgentSkill(
                    id="web-search",
                    name="Web Search",
                    description="Search the internet for information",
                    tags=["search", "web", "research"],
                )
            ],
            mcp_command="uvx ddgs-mcp",
            system_prompt=SYSTEM_PROMPT,
        )

The system prompt is the job description.
The skills list is the resume. When routing asks "who can search the web?", these tags (search, web, research) make matching easy.
uvx ddgs-mcp starts a DuckDuckGo search server. On setup, the agent connects and gets tools like search_web(query).

Writer Agent

python23 lines

SYSTEM_PROMPT = """You are a Writer Agent specialized in file system operations.
You have access to tools to:
- Read files and directories
- Write and create files
- List directory contents
Always confirm what operations you've completed."""

class WriterAgent(BaseAgent):
    def __init__(self, allowed_dir: str):
        super().__init__(
            name="Writer Agent",
            description="Reads and writes files to the filesystem",
            skills=[
                AgentSkill(
                    id="file-ops",
                    name="File Operations",
                    description="Read, write, and manage files",
                    tags=["files", "write", "filesystem"],
                )
            ],
            mcp_command=f"npx @modelcontextprotocol/server-filesystem {allowed_dir}",
            system_prompt=SYSTEM_PROMPT,
        )

allowed_dir matters. The MCP filesystem server restricts all ops to that folder. Safety first — you don't want an agent deleting your home directory.

The command npx @modelcontextprotocol/server-filesystem /tmp/workspace gives tools like read_file(), write_file(), list_directory().

Wrap Each Agent in an A2A Server

An agent sitting in memory can't talk to anyone. Expose it over HTTP:

python19 lines

from a2a.server.apps import A2AStarletteApplication
from a2a.server.request_handlers import DefaultRequestHandler
from a2a.server.tasks import InMemoryTaskStore

# Create the agent
agent = ResearchAgent()
await agent.setup()

# Wrap it in an A2A server
agent_card = agent.get_agent_card("localhost", 8001)
executor = BaseAgentExecutor(agent)
task_store = InMemoryTaskStore()
handler = DefaultRequestHandler(agent_executor=executor, task_store=task_store)
app = A2AStarletteApplication(agent_card=agent_card, http_handler=handler)

# Start the server
config = uvicorn.Config(app=app.build(), host="localhost", port=8001)
server = uvicorn.Server(config)
await server.serve()

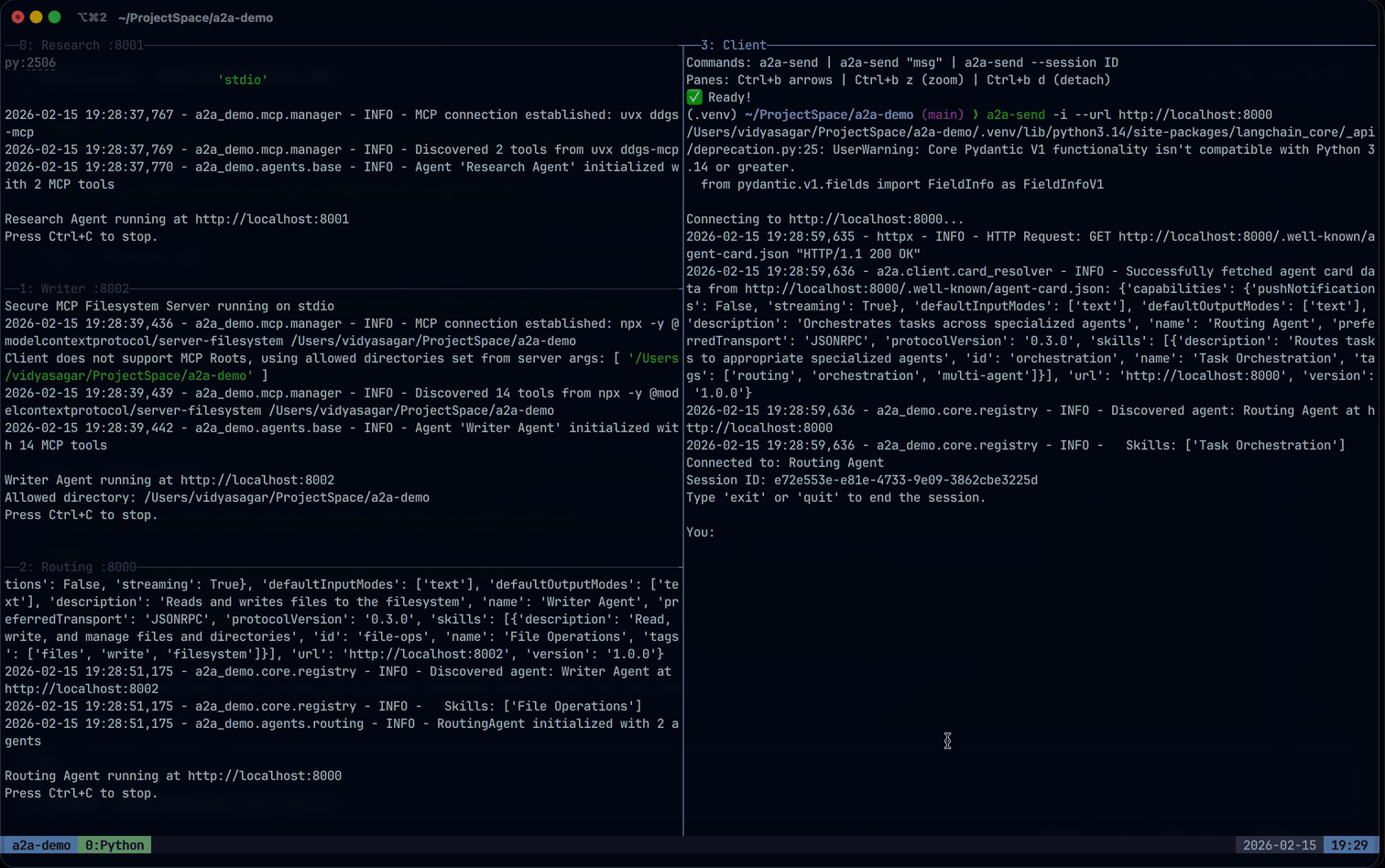

Research is live at http://localhost:8001. Anyone can:

Fetch its card at /.well-known/agent-card.json
Send it tasks via JSON-RPC

Same pattern for Writer on port 8002:

python10 lines

agent = WriterAgent(allowed_dir="/tmp/workspace")
await agent.setup()
agent_card = agent.get_agent_card("localhost", 8002)
executor = BaseAgentExecutor(agent)
task_store = InMemoryTaskStore()
handler = DefaultRequestHandler(agent_executor=executor, task_store=task_store)
app = A2AStarletteApplication(agent_card=agent_card, http_handler=handler)
config = uvicorn.Config(app=app.build(), host="localhost", port=8002)
server = uvicorn.Server(config)
await server.serve()

Two servers running. Still no door between them — that's the routing agent's job.

The Agent Registry

The registry is the routing agent's address book: who's available, how to reach them.

python46 lines

from a2a.client import A2ACardResolver, A2AClient

class AgentRegistry:
    def __init__(self):
        self._agents = {}
        self._http_client = httpx.AsyncClient(timeout=120.0)

    async def discover_agent(self, url: str):
        # Fetch the agent's card
        resolver = A2ACardResolver(httpx_client=self._http_client, base_url=url)
        card = await resolver.get_agent_card()

        # Create a client to talk to it
        client = A2AClient(httpx_client=self._http_client, agent_card=card, url=url)

        # Store for later
        self._agents[card.name] = {
            "card": card,
            "client": client,
            "url": url,
        }

    async def send_message(self, agent_name: str, task: str) -> str:
        agent = self._agents.get(agent_name)
        if not agent:
            return f"Agent '{agent_name}' not found"

        request = SendMessageRequest(
            id=str(uuid.uuid4()),
            params=MessageSendParams(
                message=Message(
                    role=Role.user,
                    parts=[Part(root=TextPart(text=task))],
                    message_id=str(uuid.uuid4()),
                )
            ),
        )

        response = await agent["client"].send_message(request)
        return parse_response(response)

    def get_agents_summary(self) -> str:
        lines = ["Available agents:"]
        for name, agent in self._agents.items():
            lines.append(f"  - {name}: {agent['card'].description}")
        return "\n".join(lines)

The registry can:

Discover — fetch cards and store connections
Send messages — route tasks to the right agent
Summarize — tell the LLM who is available

Link Registry to Routing Agent

python22 lines

class RoutingAgent:
    def __init__(self):
        self.name = "Routing Agent"
        self._registry = None
        self._memory = MemorySaver()

    async def setup(self, agent_urls: list[str]):
        self._registry = AgentRegistry()
        for url in agent_urls:
            await self._registry.discover_agent(url)

    def _create_send_message_tool(self):
        registry = self._registry

        async def send_message(agent_name: str, task: str) -> str:
            return await registry.send_message(agent_name, task)

        return StructuredTool(
            name="send_message",
            description="Send a task to a specialized remote agent",
            coroutine=send_message,
        )

The routing agent:

Takes agent URLs during setup
Discovers each one through the registry
Exposes a send_message tool LangGraph can call

Start the Routing Agent Server

python17 lines

agent = RoutingAgent()

# Discover specialist agents
await agent.setup([
    "http://localhost:8001",  # Research
    "http://localhost:8002",  # Writer
])

agent_card = agent.get_agent_card("localhost", 8000)
executor = RoutingAgentExecutor(agent)
task_store = InMemoryTaskStore()
handler = DefaultRequestHandler(agent_executor=executor, task_store=task_store)
app = A2AStarletteApplication(agent_card=agent_card, http_handler=handler)

config = uvicorn.Config(app=app.build(), host="localhost", port=8000)
server = uvicorn.Server(config)
await server.serve()

Routing is live at http://localhost:8000. It knows both specialists and can delegate.

Create a Client

python30 lines

from a2a.client import A2ACardResolver, A2AClient

async def main():
    resolver = A2ACardResolver(
        httpx_client=httpx.AsyncClient(),
        base_url="http://localhost:8000",
    )
    card = await resolver.get_agent_card()

    client = A2AClient(
        httpx_client=httpx.AsyncClient(),
        agent_card=card,
        url="http://localhost:8000",
    )

    request = SendMessageRequest(
        id=str(uuid.uuid4()),
        params=MessageSendParams(
            message=Message(
                role=Role.user,
                parts=[Part(root=TextPart(
                    text="research AI news and save to notes.txt"
                ))],
                message_id=str(uuid.uuid4()),
            )
        ),
    )

    response = await client.send_message(request)
    print(response)

Or an interactive CLI with a session id so the agent remembers the thread:

python15 lines

registry = AgentRegistry()
await registry.discover_agent("http://localhost:8000")
session_id = str(uuid.uuid4())

while True:
    message = input("You: ")
    if message.lower() in ("exit", "quit"):
        break

    response = await registry.send_message_with_session(
        "Routing Agent",
        message,
        session_id,
    )
    print(f"Agent: {response}")

Agents discover each other through A2A agent cards
Tools come from MCP — no hardcoding search or file logic
LangGraph handles reasoning — each agent thinks independently
The routing agent orchestrates — delegates based on skills, not brittle rules

The specialists stay small. Routing is basically an LLM with one tool: send_message.

That's the point.

A2A handles communication
MCP handles tools
LangGraph handles thinking and memory

You wire them together.

What you can build next

More specialists (code writer, data analyst, email sender)
Different MCP servers (databases, APIs, browsers)
Agents across machines — A2A doesn't care where they run
Agent marketplaces where anyone can publish and discover agents

The future isn't one super-agent that does everything. It's many small agents that do one thing well — and talk to each other.

Links

Thanks for reading.

Building Multi-Agent Systems with Google’s A2A Protocol

What is A2A?

The Architecture

Tech Stack

LangGraph

MCP (Model Context Protocol)

A2A Python SDK

Building the Agents

The Base Agent

Research Agent

Writer Agent

Wrap Each Agent in an A2A Server

The Agent Registry

Link Registry to Routing Agent

Start the Routing Agent Server

Create a Client

Startup Sequence

Multi-Agent Task Flow

See It in Action

What We Built

What you can build next

Links

Related notes

Developing an MCP Server in Dart and Embedding It in Google Agent Development Kit

What is A2A?#

The Architecture#

Tech Stack#

LangGraph#

MCP (Model Context Protocol)#

A2A Python SDK#

Building the Agents#

The Base Agent#

Research Agent#

Writer Agent#

Wrap Each Agent in an A2A Server#

The Agent Registry#

Link Registry to Routing Agent#

Start the Routing Agent Server#

Create a Client#

Startup Sequence#

Multi-Agent Task Flow#

See It in Action#

What We Built#

What you can build next#

Links#

Related notes

Developing an MCP Server in Dart and Embedding It in Google Agent Development Kit

What is A2A?

The Architecture

Tech Stack

LangGraph

MCP (Model Context Protocol)

A2A Python SDK

Building the Agents

The Base Agent

Research Agent

Writer Agent

Wrap Each Agent in an A2A Server

The Agent Registry

Link Registry to Routing Agent

Start the Routing Agent Server

Create a Client

Startup Sequence

Multi-Agent Task Flow

See It in Action

What We Built

What you can build next

Links
